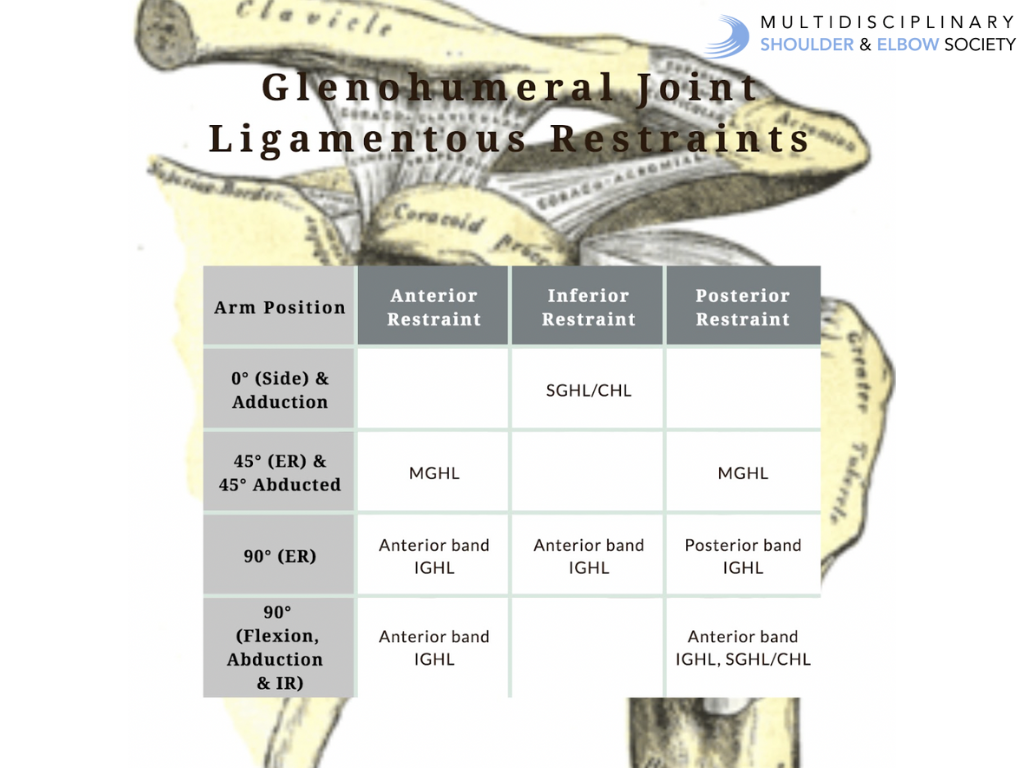

Shoulder Glenohumeral Ligament Restraint Complex

Superior Glenohumeral Ligament (SGHL)

The SGHL extends from the anteriosuperior labrum to the humerus. It functions as a primary restraint to inferior translation when the arm is at 0° degrees of abduction in neutral rotation. Additionally, the SGHL prevents anteroinferior translation of the long head of biceps, effectively serving as a biceps pulley.

Middle Glenohumeral Ligament (MGHL)

The MGHL plays a critical role in shoulder stability by resisting both anterior and posterior translation in the midrange of abduction (approximately 45°) when the arm is in external rotation.

Inferior Glenohumeral Ligament (IGHL)

Posterior Band IGHL

The posterior band of the IGHL serves as the most important restraint to posterior subluxation when the shoulder is at 90° flexion and internal rotation. Tightness in this structure can lead to internal impingement and increased shear forces on the superior labrum, which has been linked to SLAP lesions.

Anterior Band IGHL

From a stability perspective, the anterior band of the IGHL functions as the primary restraint to anterior and inferior translation at 90° abduction and maximum external rotation, which is particularly relevant during the late cocking phase of throwing. Anatomically, it anchors into the anterior labrum, forming a weak link that predisposes the shoulder to Bankart lesions.

Superior Band IGHL

The superior band of the IGHL is considered the most important static stabilizer about the joint. Research has shown that there is a 100% increased strain on the superior band of IGHL in the presence of a SLAP lesion.

Coracohumeral Ligament (CHL)

The CHL extends from the coracoid process to the rotator cable. It limits posterior translation when the shoulder is in flexion, adduction, and internal rotation. Additionally, the CHL limits inferior translation and external rotation when the arm is in an adducted position.

References

1. Terry GC, Hammon D, France P, Norwood LA. The stabilizing function of passive shoulder restraints. Am J Sports Med. 1991;19(1):26-34.
2. Burkart AC, Debski RE. Anatomy and function of the glenohumeral ligaments in anterior shoulder instability. Clin Orthop Relat Res. 2002;(400):32-39.
3. Warner JJ, Deng XH, Warren RF, Torzilli PA. Static capsuloligamentous restraints to superior-inferior translation of the glenohumeral joint. Am J Sports Med. 1992;20(6):675-685.
4. Harryman DT 2nd, Sidles JA, Harris SL, Matsen FA 3rd. The role of the rotator interval capsule in passive motion and stability of the shoulder. J Bone Joint Surg Am. 1992;74(1):53-66.
5. Vangsness CT Jr, Jorgenson SS, Watson T, Johnson DL. The origin of the long head of the biceps from the scapula and glenoid labrum. An anatomical study of 100 shoulders. J Bone Joint Surg Br. 1994;76(6):951-954.
6. Turkel SJ, Panio MW, Marshall JL, Girgis FG. Stabilizing mechanisms preventing anterior dislocation of the glenohumeral joint. J Bone Joint Surg Am. 1981;63(8):1208-1217.
7. O'Brien SJ, Neves MC, Arnoczky SP, et al. The anatomy and histology of the inferior glenohumeral ligament complex of the shoulder. Am J Sports Med. 1990;18(5):449-456.
8. Ticker JB, Beim GM, Warner JJ. Recognition and treatment of refractory posterior capsular contracture of the shoulder. Arthroscopy. 2000;16(1):27-34.
9. Burkhart SS, Morgan CD. The peel-back mechanism: its role in producing and extending posterior type II SLAP lesions and its effect on SLAP repair rehabilitation. Arthroscopy. 1998;14(6):637-640.
10. Pagnani MJ, Deng XH, Warren RF, Torzilli PA, O'Brien SJ. Role of the long head of the biceps brachii in glenohumeral stability: a biomechanical study in cadavera. J Shoulder Elbow Surg. 1996;5(4):255-262.
11. Bankart AS. The pathology and treatment of recurrent dislocation of the shoulder-joint. Br J Surg. 1938;26(101):23-29.
12. Rodosky MW, Harner CD, Fu FH. The role of the long head of the biceps muscle and superior glenoid labrum in anterior stability of the shoulder. Am J Sports Med. 1994;22(1):121-130.
13. Neer CS 2nd, Satterlee CC, Dalsey RM, Flatow EL. The anatomy and potential effects of contracture of the coracohumeral ligament. Clin Orthop Relat Res. 1992;(280):182-185.
14. Tetro AM, Bauer G, Hollstien SB, Yamaguchi K. Arthroscopic release of the rotator interval and coracohumeral ligament: An anatomic study in cadavers. Arthroscopy. 2002;18(2):145-150.
15. Edelson JG, Taitz C, Grishkan A. The coracohumeral ligament. Anatomy of a substantial but neglected structure. J Bone Joint Surg Br. 1991;73(1):150-153.
